DIY Difficulty Level
Easy


Navigate: Main_Page ...Do It Yourself ...Jacking Up Your Car

OverviewModels and YearsTools NeededInstructionsSimilar PagesExternal Links

OverviewEdit

Models and Years:

This is a guide on how to jack up your car properly.


ToolsEdit


InstructionsEdit

ALWAYS put your vehical in gear and lock your E-brake when jacking your vehical up, and use jack stands.

Jacking PointsEdit

Photos of the jacking points

RearJackPoints

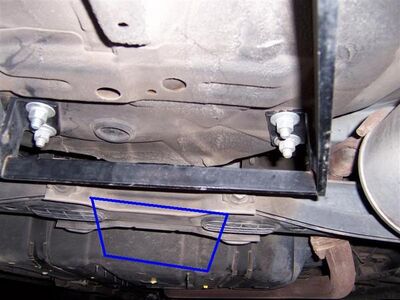

Rear Jack Point: for use with a floor jack
Sportman1280Added by Sportman1280

SideJackPoints

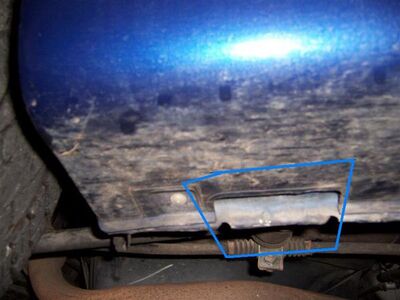

Side jack point, one on each corner. This is where you stick your stock jack. There's four places, one for each tire.
Sportman1280Added by Sportman1280

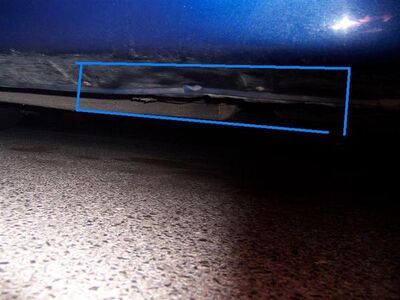

ResultsOfBadJackPoints
If you do not use the side jack points, this will happen
Sportman1280Added by Sportman1280

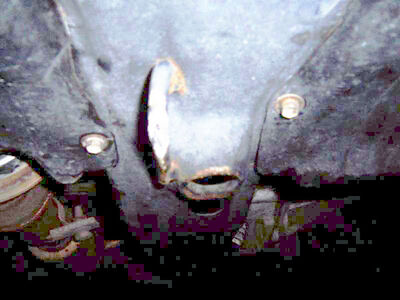

FrontJackPoint
The front picture is kind of dim. It's right behind the tow point. It is designed for a bottle jack, but a standard or shop floor jack will function just fine.
Sportman1280Added by Sportman1280


Using a Floor Jack Edit

Pictures explaining how to jack up your car with a floor jack

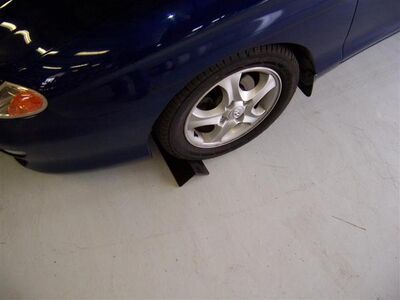

FloorJackWheelChocks
Place wheel chocks in front of vehical
Sportman1280Added by Sportman1280

FloorJackRearJack

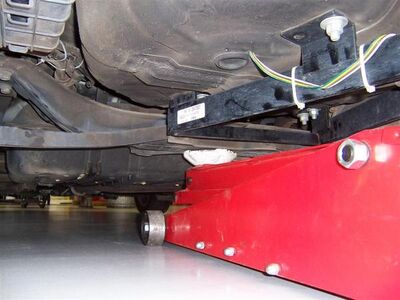

The rear jacking point
Sportman1280Added by Sportman1280

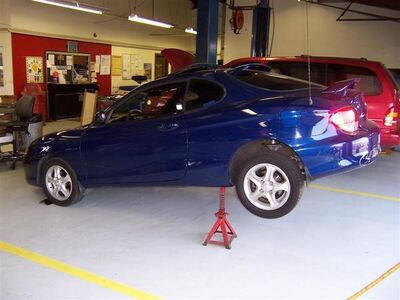

FloorJackOnStands
Vehical on jackstands
Sportman1280Added by Sportman1280

Note: You should use jackstands in pairs and never go further then 2 clicks from the end. Always use the steel reenforced areas of the vehical.

Using a Lift Ramp Edit

Have a buddy ground guide you onto a lift ramp ensure your vehical is centered, use wheel chocks, and lift your vehical up.

LiftRampWheelChocks

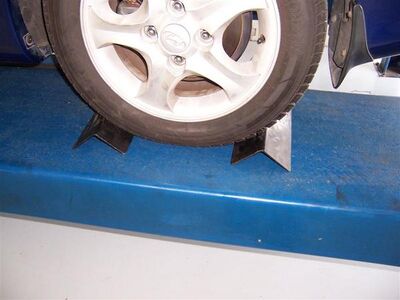

Wheel chocks are your friends and they prevent accidents.
Sportman1280Added by Sportman1280

LiftRampLiftVechicle

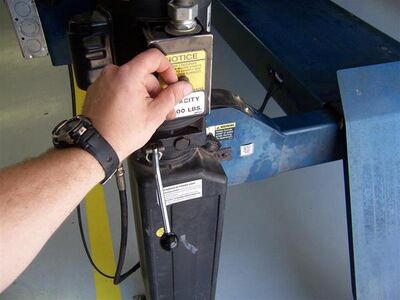

Lift your vehical to the desired hight and then go past that until you hear another set of clicks. The clicking point is where your vehical will settle when fully raised.
Sportman1280Added by Sportman1280

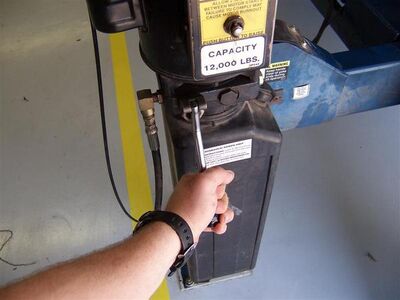

LiftRampLowerVechicle
Lower the lift until it comes to rest on the hard stops (clicks)
Sportman1280Added by Sportman1280

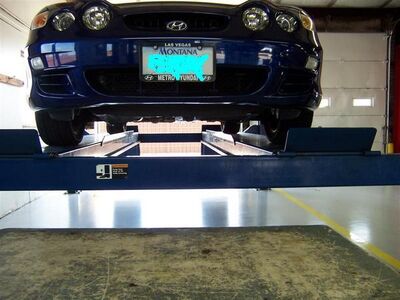

LiftRampFinished
Should look like this when finished
Sportman1280Added by Sportman1280

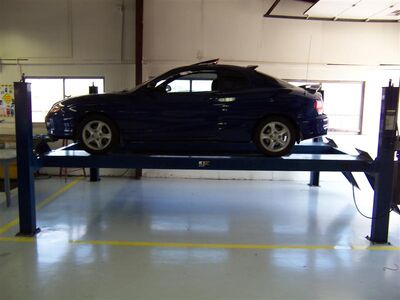

LiftRampFinished02
When you get to desired hight, go a little higher and then operate the release to let the lift land on the catches.
Sportman1280Added by Sportman1280

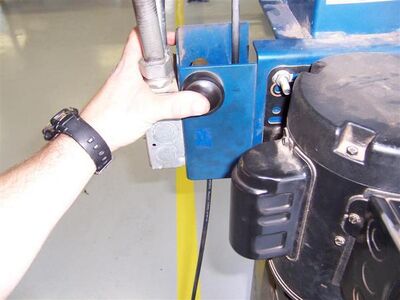

LiftRampLowerVechicle02
When it's time to lower the vehical, lift it up a little, then operatate the catch release and lower the vehical.
Sportman1280Added by Sportman1280
